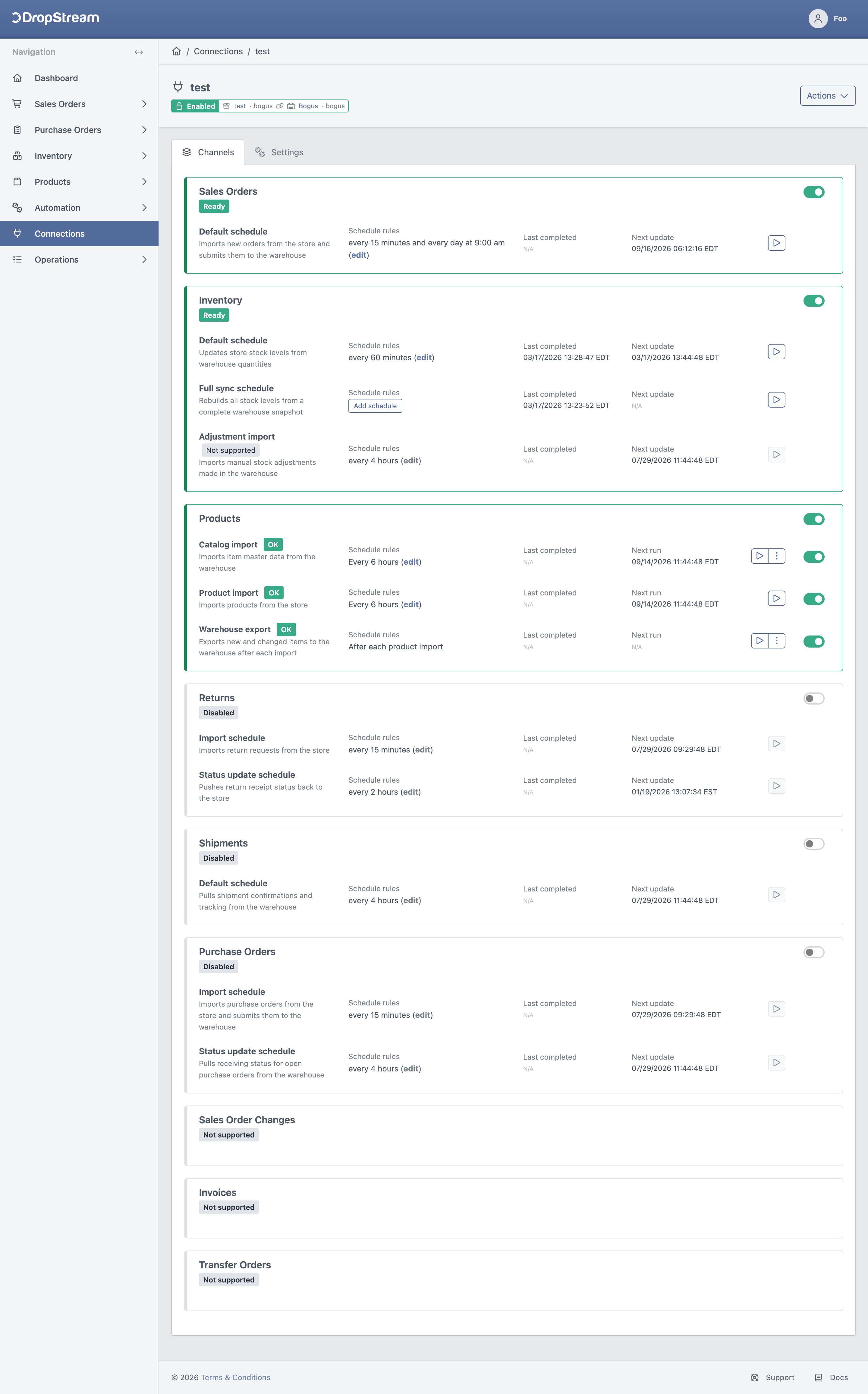

The Channels tab on a Connection shows every kind of data DropStream can move between the store and the warehouse. Each channel is a card, and each schedule inside a card gets its own row.
What a schedule row shows
| Part | What it shows |
|---|---|
| Name and description | The schedule, and what it moves |
| Schedule rules | How often it runs, and the control to change that |
| Last completed | When it last finished |
| Next update (or Next run) | When it is due to run again |
| Actions | The button that runs the schedule now |
Available channels
A channel is available only when both the store platform and the warehouse platform support it. What you see depends on the pair.
| Channel | Schedules in the card |
|---|---|
| Sales Orders | Default schedule |
| Shipments | Default schedule |
| Inventory | Default schedule, Full sync schedule, Adjustment import |
| Products | Catalog import, Product import, Warehouse export |
| Returns | Import schedule, Status update schedule |
| Purchase Orders | Import schedule, Status update schedule |
| Sales Order Changes | Detection schedule |
| Invoices | Import schedule |
| Transfer Orders | Import schedule, Shipment import schedule |

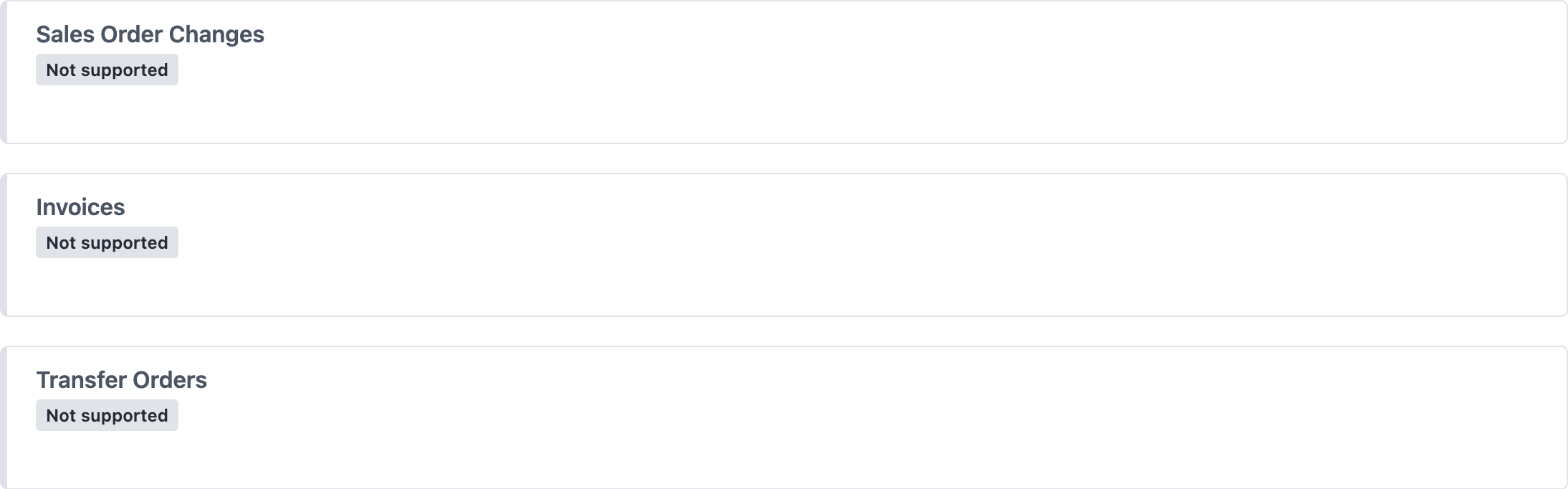

When a channel shows “Not supported”
A channel the two platforms do not support together shows its name and a Not supported badge, with no rows.

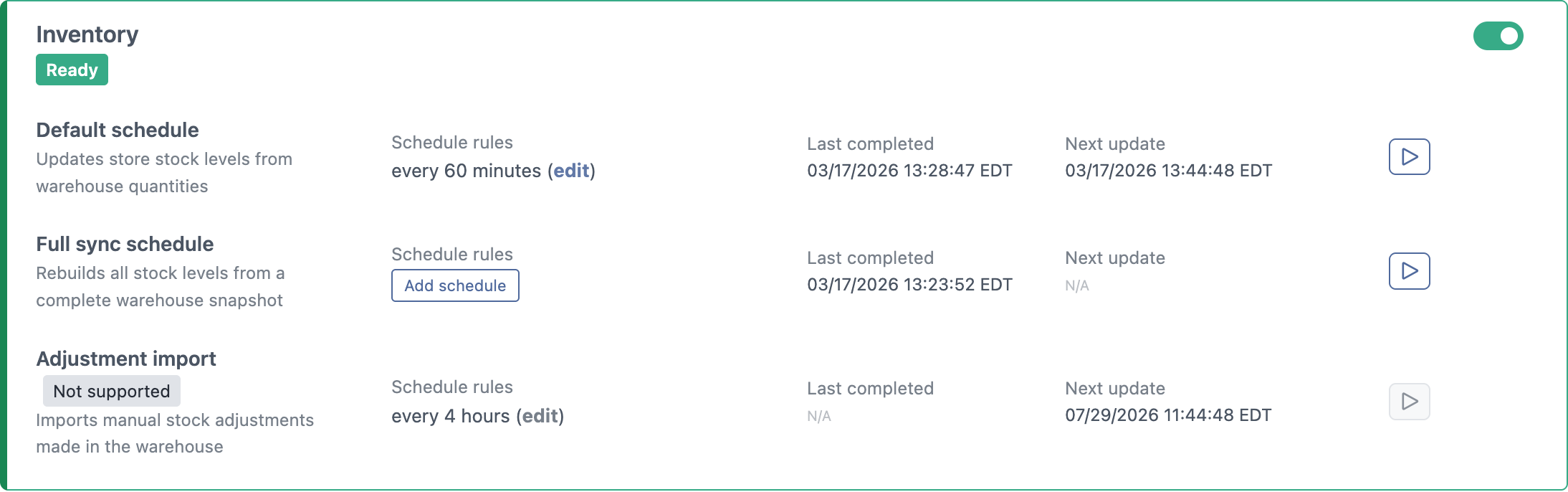

A single row can also be unsupported while the rest of the channel works, like the Adjustment import row in the Inventory screenshot above.
If a channel you expected isn’t there, check the integration docs for both your store platform and your warehouse platform — DropStream Integrations.

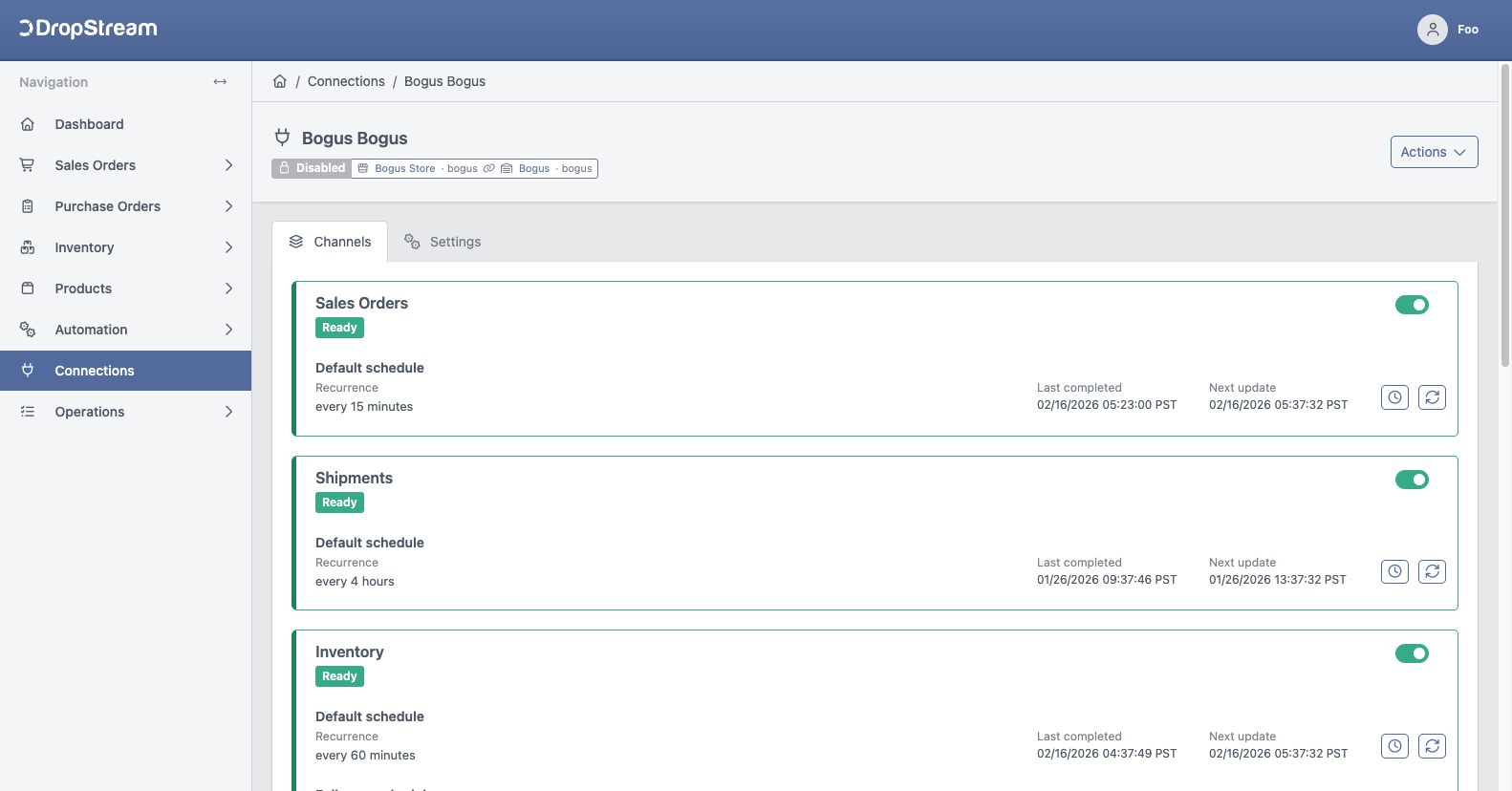

Turn a channel on or off
Each channel card has its own switch. Turning a channel off stops just that data flow; the rest of the Connection keeps running. Use it, for example, to import orders but not push inventory updates back to the store.
The Products card also has a switch on each row. The card switch suspends the whole group; each row switch decides whether that one schedule runs by itself. Turning the group back on restores what each row was set to before.

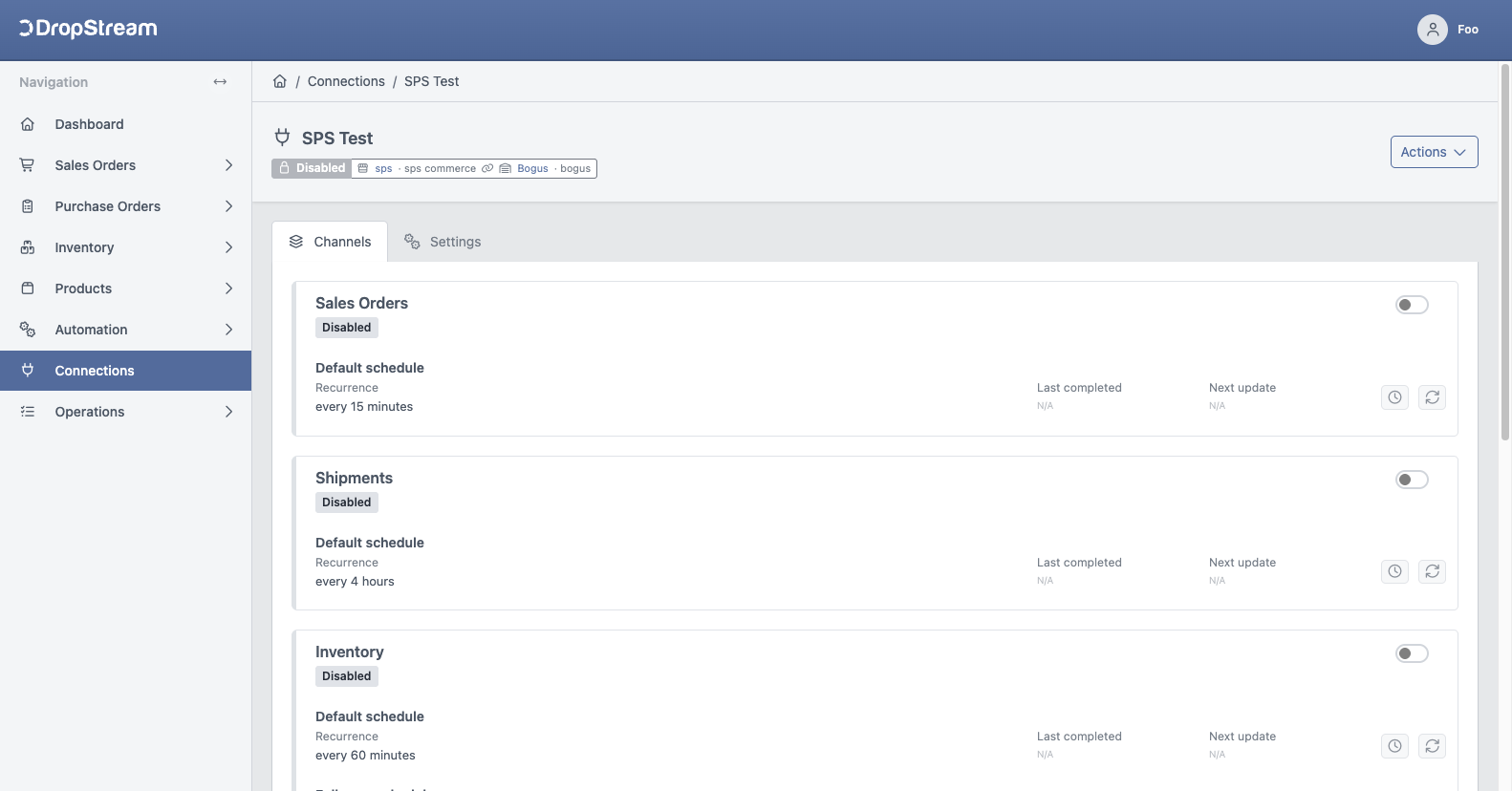

The connection-level switch is separate — see Enable, Disable, or Delete a Connection. The Connection must be enabled for any channel to run.
Change a schedule
The Schedule rules column shows how often a schedule runs, and holds the control to change it.
- Find the schedule you want to change.

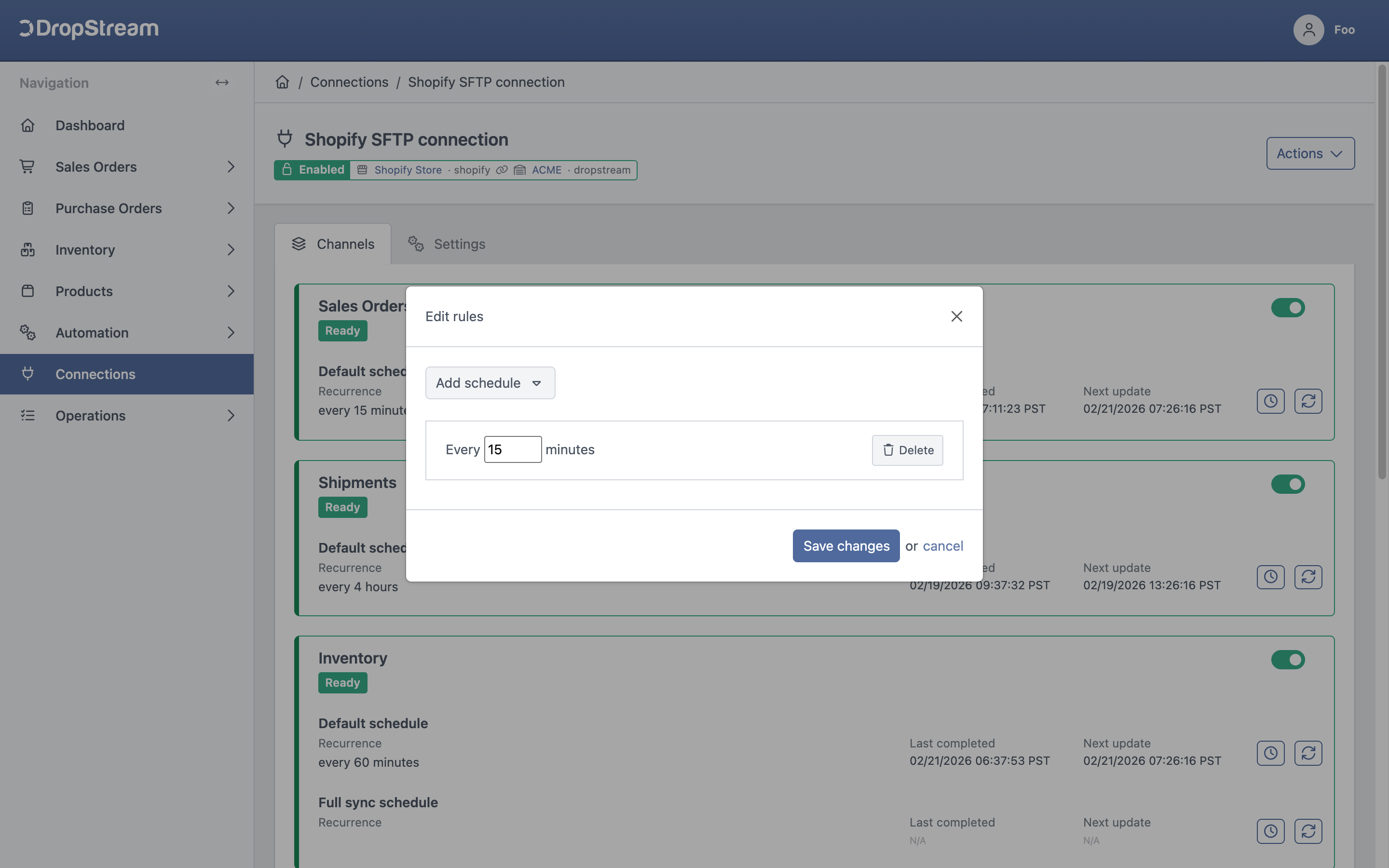

- In its Schedule rules column, click the bold edit link after the cadence. If the schedule has no rules yet, the column shows an Add schedule button instead — click that.

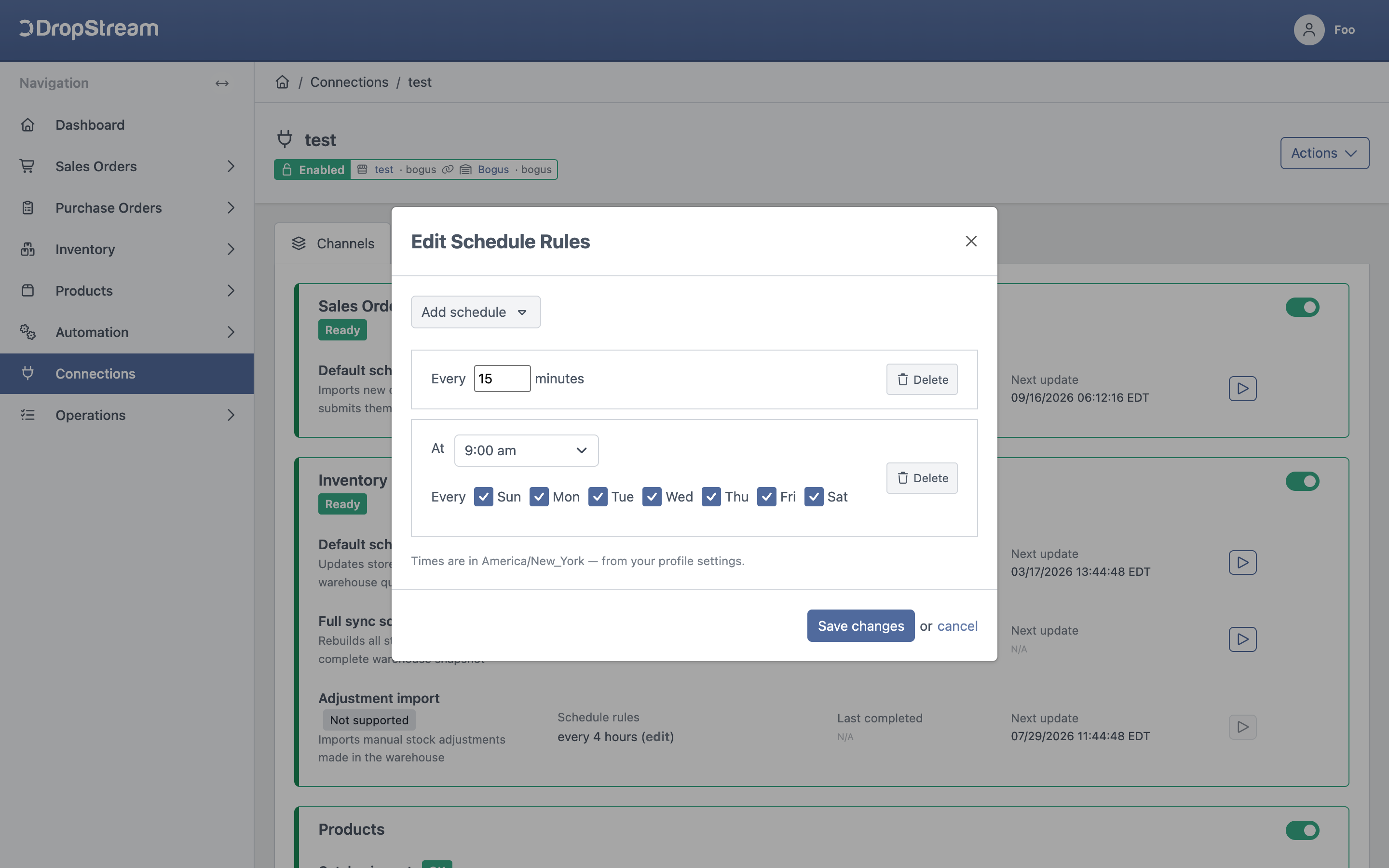

- Change the rules in the dialog that opens.
- Click Save changes.

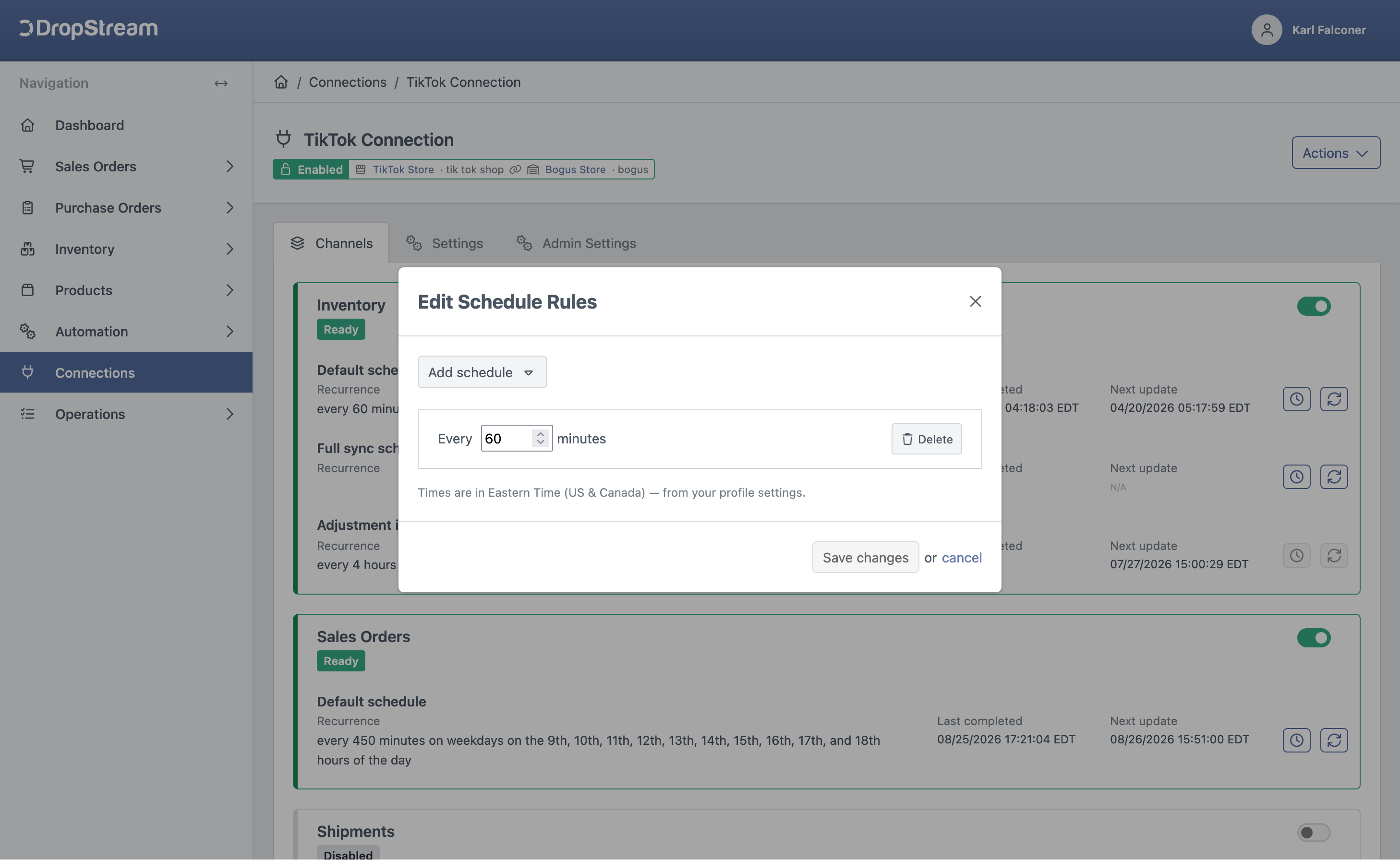

One schedule can carry several rules. To add one, use the Add schedule button inside the dialog and pick a rule type:
- Minutely — every N minutes.
- Hourly — every N hours.
- At specific times — one exact time of day, on the days you pick. Use it to import on weekdays only.
- Flexible — a fuller recurrence pattern.
Rules add up, so one schedule can run on one pattern during the day and a different one overnight. Times follow the time zone in your profile settings.
Most schedules have a limit on how often they can run, and the limit is not the same for all of them. The dialog will not accept a shorter interval.
Schedules with nothing to edit
Some schedules follow another one instead of running on their own clock. Warehouse export is the example: it has no cadence of its own, so there is nothing to edit. Its Schedule rules column reads “After each product import” when the row is on, and “Manual only” when it is off.
Run a schedule now
Click the play button on a row to run that schedule immediately. On the Products card this works even when the row’s own switch is off. That switch only decides whether the schedule also runs by itself.

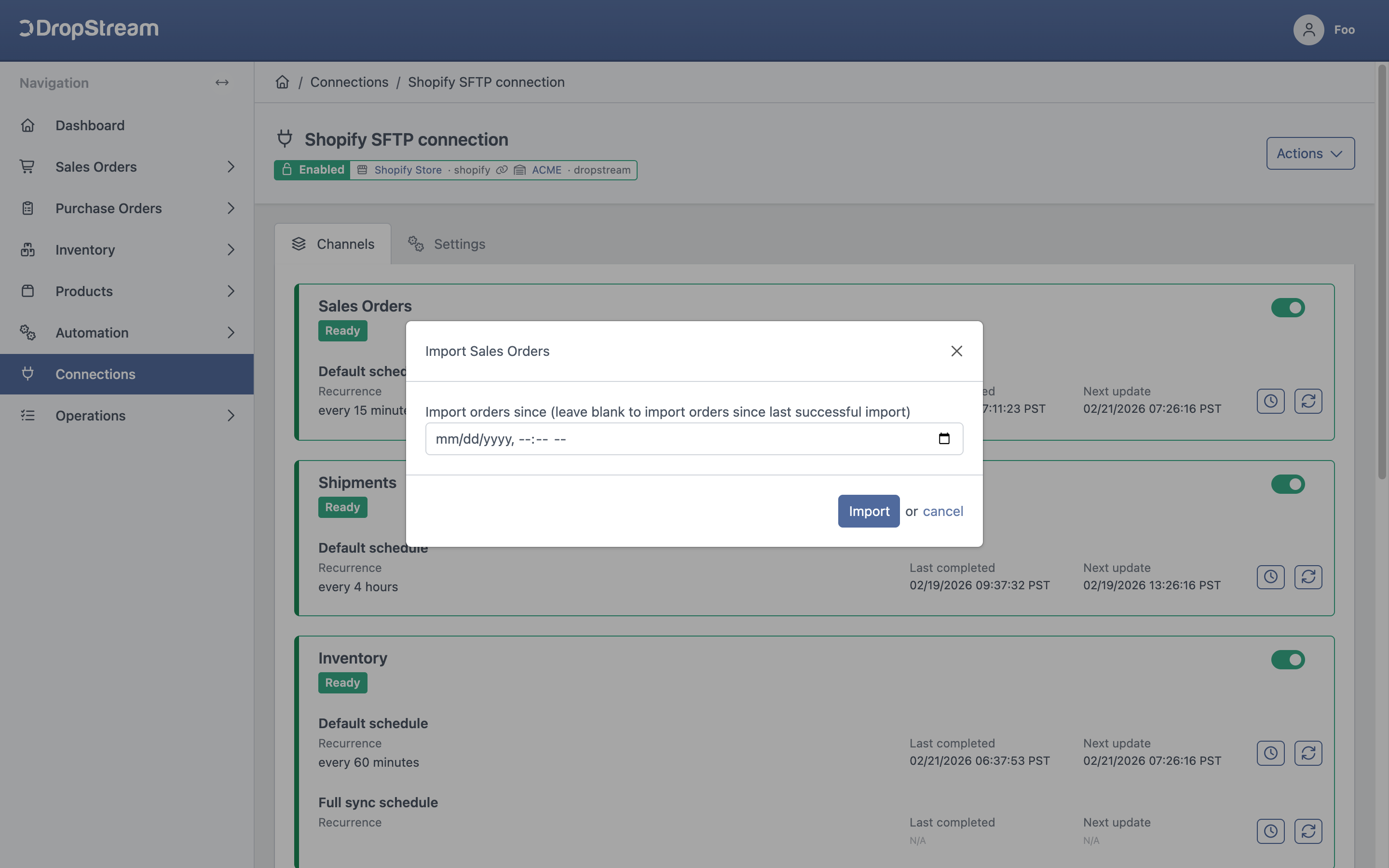

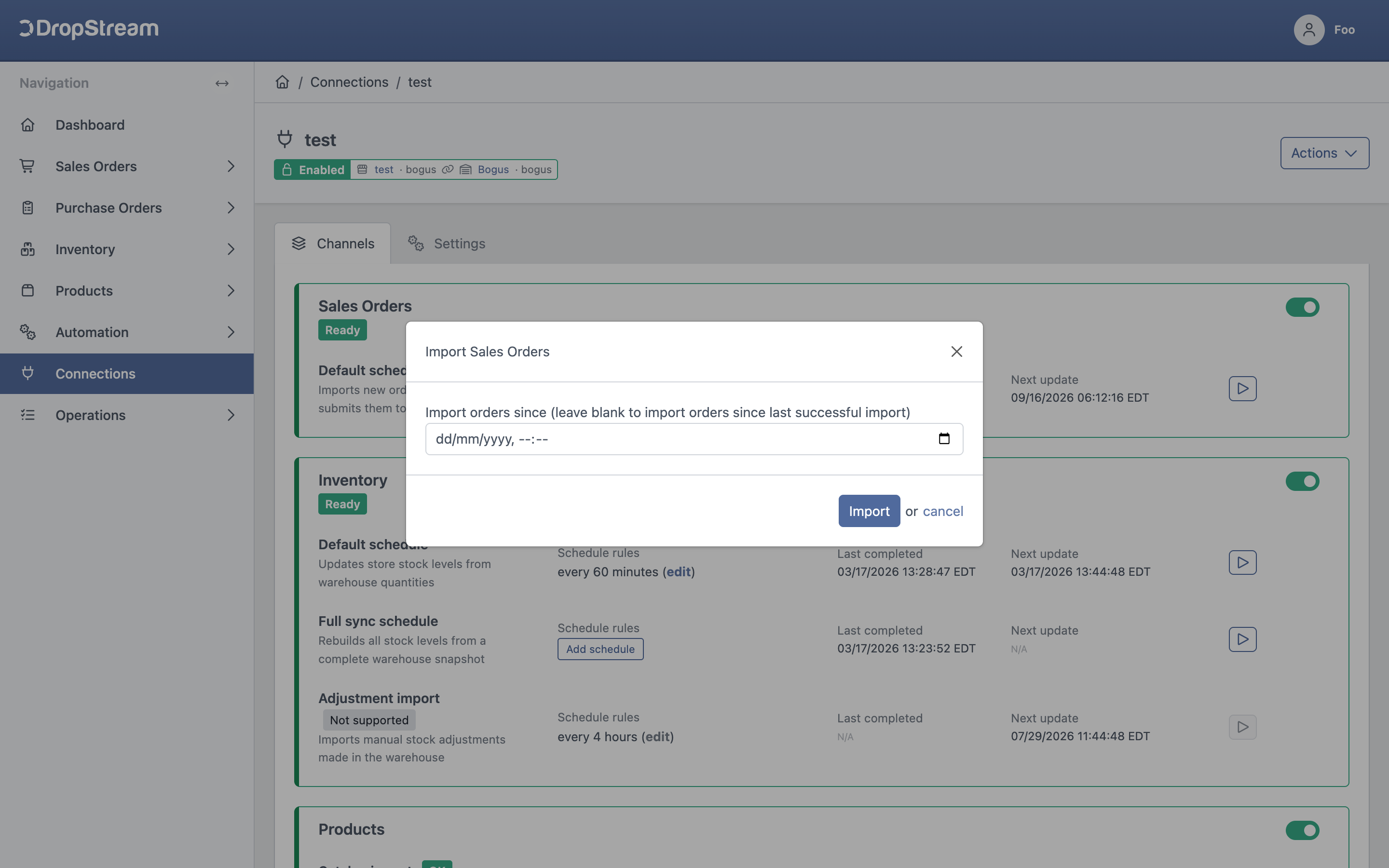

Some rows ask you to confirm. Others open a dialog with options first. The Import Sales Orders dialog on the Sales Orders row, for example, lets you leave the date blank to import everything since the last successful run, or pick a cutoff date.
Extra ways to run a schedule
A few schedules can run in more than one mode. The extra modes sit behind the vertical ellipsis next to the play button.

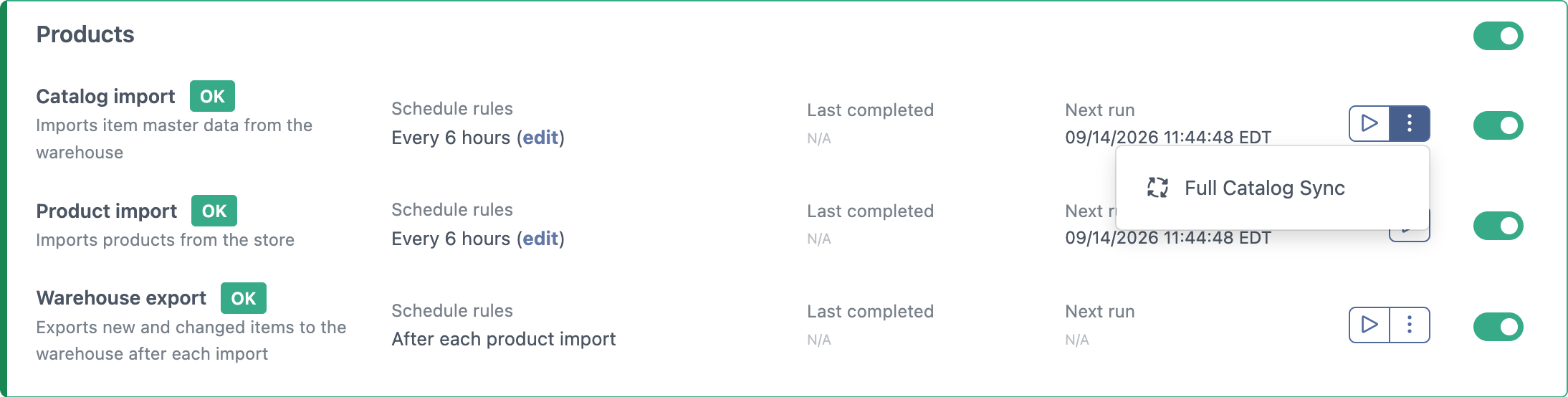

On the Catalog import row, that menu holds Full Catalog Sync. It re-imports every item from the warehouse and re-sends the whole catalog to the store, instead of only what changed. It asks you to confirm with Sync everything before it starts.
On the Warehouse export row, the same menu holds Full Warehouse Export, which re-sends the whole product catalog to the warehouse.
